Decoding Garage Door Torsion Spring Color Codes: A Handy Guide


 Garage doors play a vital role in ensuring the safety of our homes, and an important part of their smooth operation are torsion springs. As a homeowner, it’s important to understand the importance of torsion springs and the color codes associated with them. In this blog post, we’ll break down the garage door torsion spring color coding system and explore its relevance in maintaining an efficient and functional garage door.

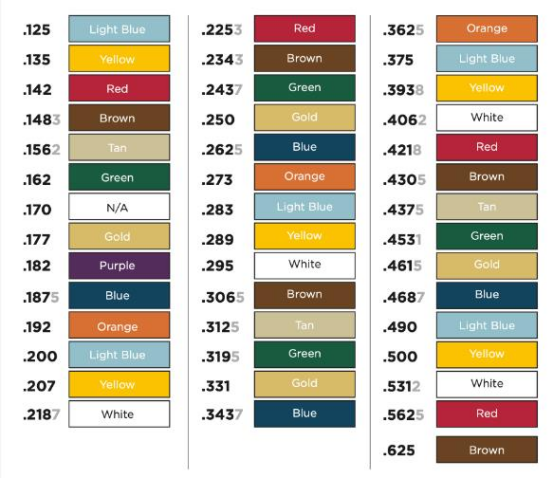

garage door torsion spring color code

 Learn about garage door torsion springs:

 Torsion springs are tightly wound metal coils that are installed on the upper side of your garage door. They play a key role in balancing the weight of the door, making it easier to open and close manually or with the help of an automatic garage door opener. Over time, torsion springs can weaken or break due to wear and need to be replaced.

 Importance of Color Codes:

 To ensure safety and correct function, manufacturers have implemented a color-coding system that differentiates torsion springs based on their size, strength, and intended application. These color codes can provide valuable information to homeowners, professional installers and service technicians, helping them identify the correct torsion springs required for a specific garage door.

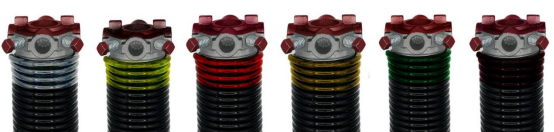

Garage Door Torsion Spring

 Decode color code system:

 1. Color code types:

 Color coding systems can vary between manufacturers, but typically black, gold, red, and orange are used as the primary colors. Each color represents a specific wire size, length and spring strength.

 2. Wire size and length:

 Generally speaking, torsion springs are classified according to their wire size, which is measured in inches or millimeters. While the wire size determines the overall strength of the spring, the length indicates the torque the spring develops as it is wound. Different garage doors require specific spring sizes to ensure optimal balance and prevent unnecessary tension.

 3. Weight calculation:

 To determine the right torsion spring for your garage door, you must accurately calculate the weight of the door. This helps with selecting the correct color code and ensures that the springs adequately balance the weight of the door throughout its range of motion.

 4. Seek professional help:

 Due to the complexity and potential dangers of replacing a torsion spring, it is always recommended to seek professional help. Experts have the knowledge, tools, and experience needed to handle the job safely and efficiently. Additionally, they are skilled at interpreting color codes and selecting the appropriate torsion springs for your specific garage door model and weight.

 In conclusion:

 The garage door torsion spring color coding system is an important tool in maintaining optimal functionality and safety of your garage door. By understanding the meaning behind these color codes, you can ensure you choose the correct spring and minimize the risk of premature wear, breakage, or an unbalanced door. When performing garage door maintenance or repairs, remember to rely on professional assistance to ensure the best results.

 So the next time you need to replace your torsion springs, pay close attention to the color code, evaluate your garage door’s weight requirements, and consult with a knowledgeable expert for a smooth, worry-free experience.
